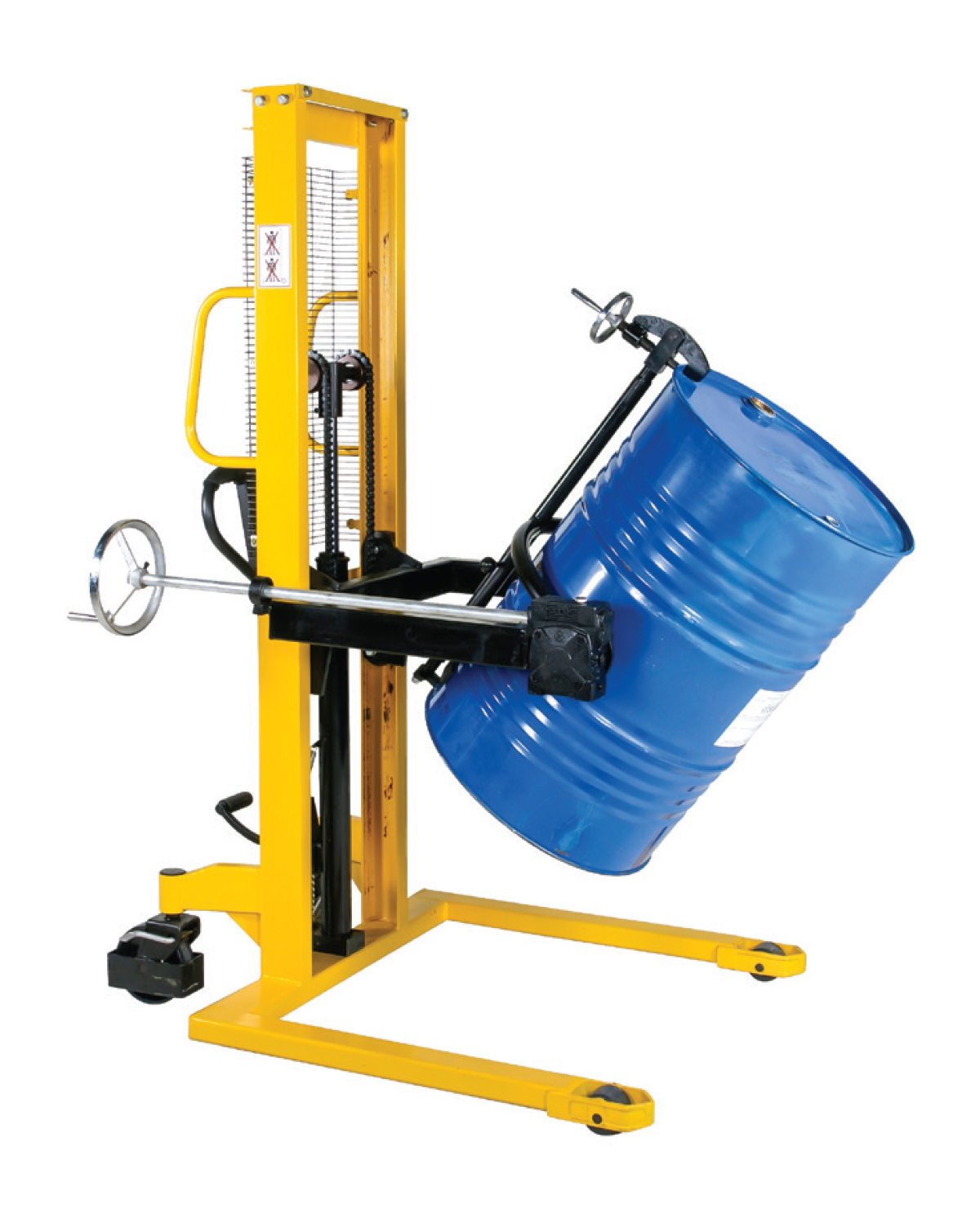

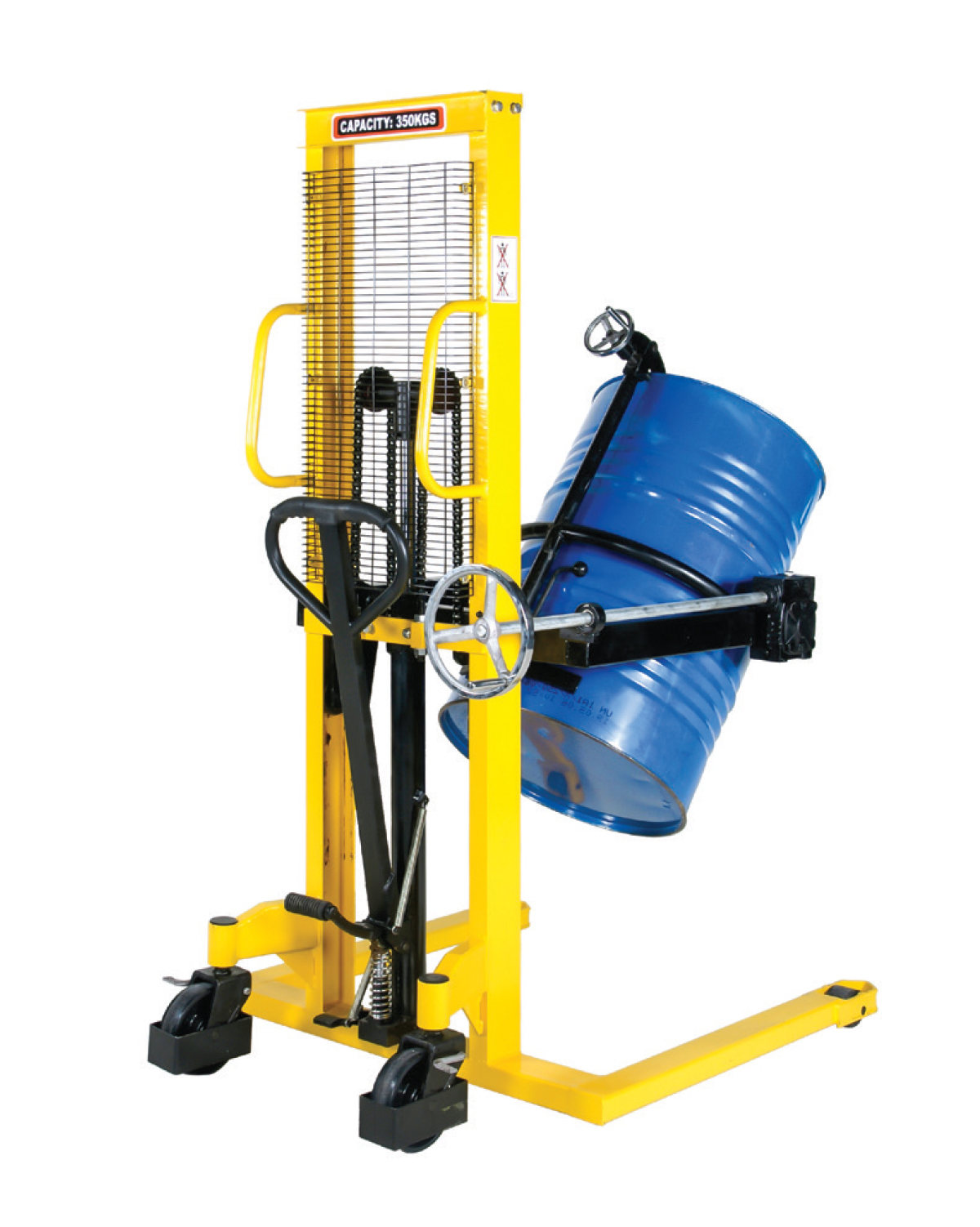

The Hydraulic Drum Stacker with Tilt function is a specialized and highly efficient solution designed for transporting, lifting, and pouring liquids or chemicals from standard drums. Featuring a robust manual hydraulic pump system integrated with a heavy-duty chain drive, this equipment allows operators to lift fully loaded drums up to a maximum height of 1400mm smoothly and safely.
The key feature of this stacker is its precise drum tilting mechanism, controlled via an ergonomic handwheel and a geared rotation system. This allows for controlled, effortless, and accurate 360-degree rotation, enabling seamless pouring and decanting operations. Constructed from premium-grade structural steel with a durable powder-coated finish, the stacker features a wide U-shaped base frame that ensures exceptional stability during high-elevation lifting of loads up to 350kg. Equipped with high-quality, wear-resistant Nylon wheels, it provides smooth maneuverability and easy handling across warehouse and factory floors.
Specifications:
- Width: 1070 mm
- Depth: 1240 mm
- Height: 2020 mm
- Max. Lift Height: 1400 mm
- Steer wheel diameter: Ø 180 mm (Nylon)
- Fixed wheel diameter: Ø 74 mm (Nylon)
- Capacity: 350 kg
- Weight: 155 kg
