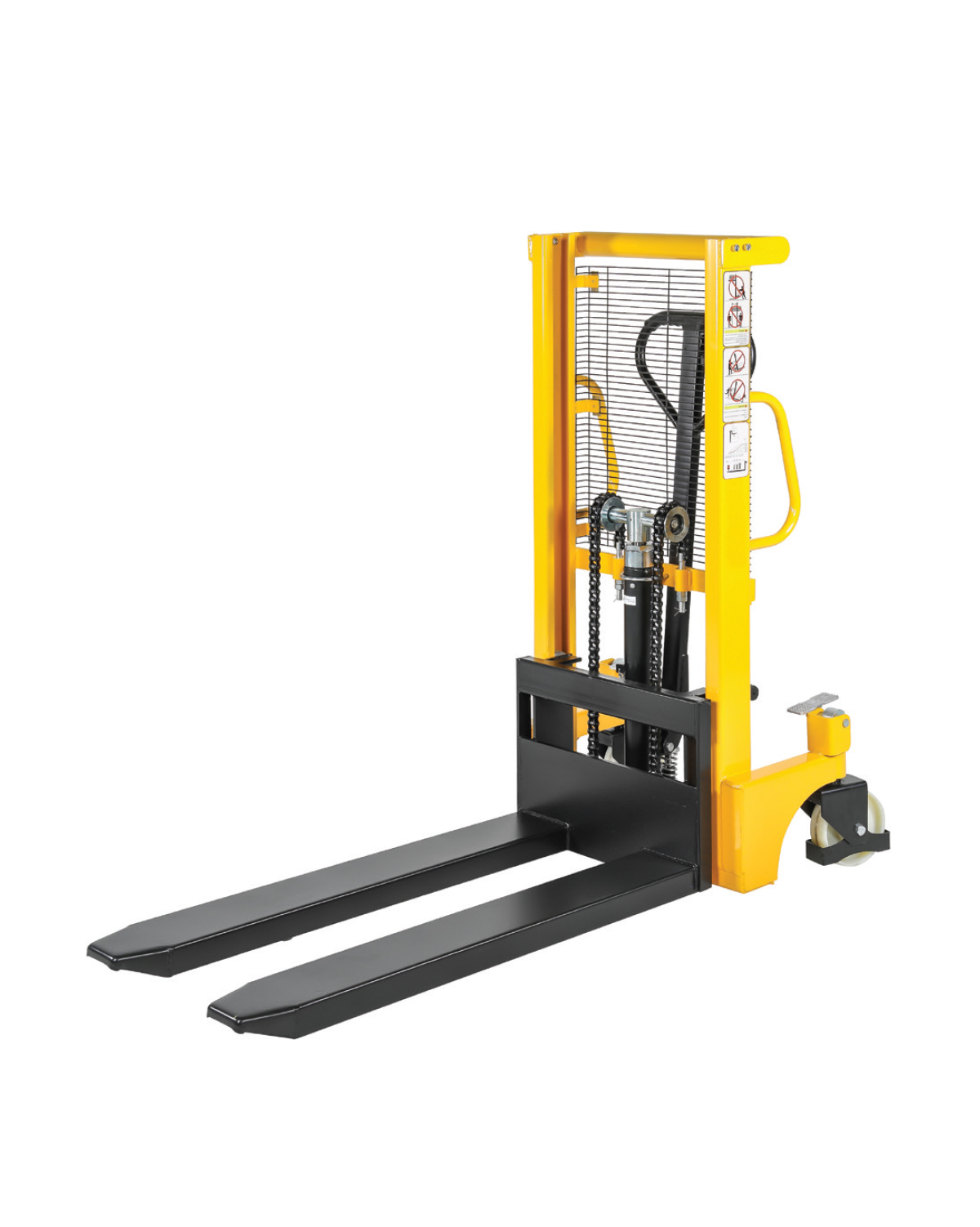

The Manual Stacker with a 1000 mm lift height is an ideal and economical solution for lifting, moving, and stacking palletized goods in warehouses, workshops, or confined spaces. Operated entirely manually via a hydraulic foot pedal or hand lever, it allows operators to lift loads up to 1000 kg safely and effortlessly. Featuring a robust steel frame structure combined with high-capacity nylon wheels, this stacker ensures smooth maneuverability, low rolling resistance, and floor protection. It is an essential material handling tool to reduce labor intensity and improve operational efficiency.
Specifications:
- Width (W): 755 mm
- Depth (D): 1655 mm
- Height (H): 1490 mm
- Lift Height (min - max): 90 - 1000 mm
- Fork Dimensions (W x L): 550 x 1150 mm
- Steer wheel diameter: Nylon Ø 150 mm
- Fork wheel diameter: Nylon Ø 80 mm
- Capacity: 1000 kg
- Weight: 183 kg
