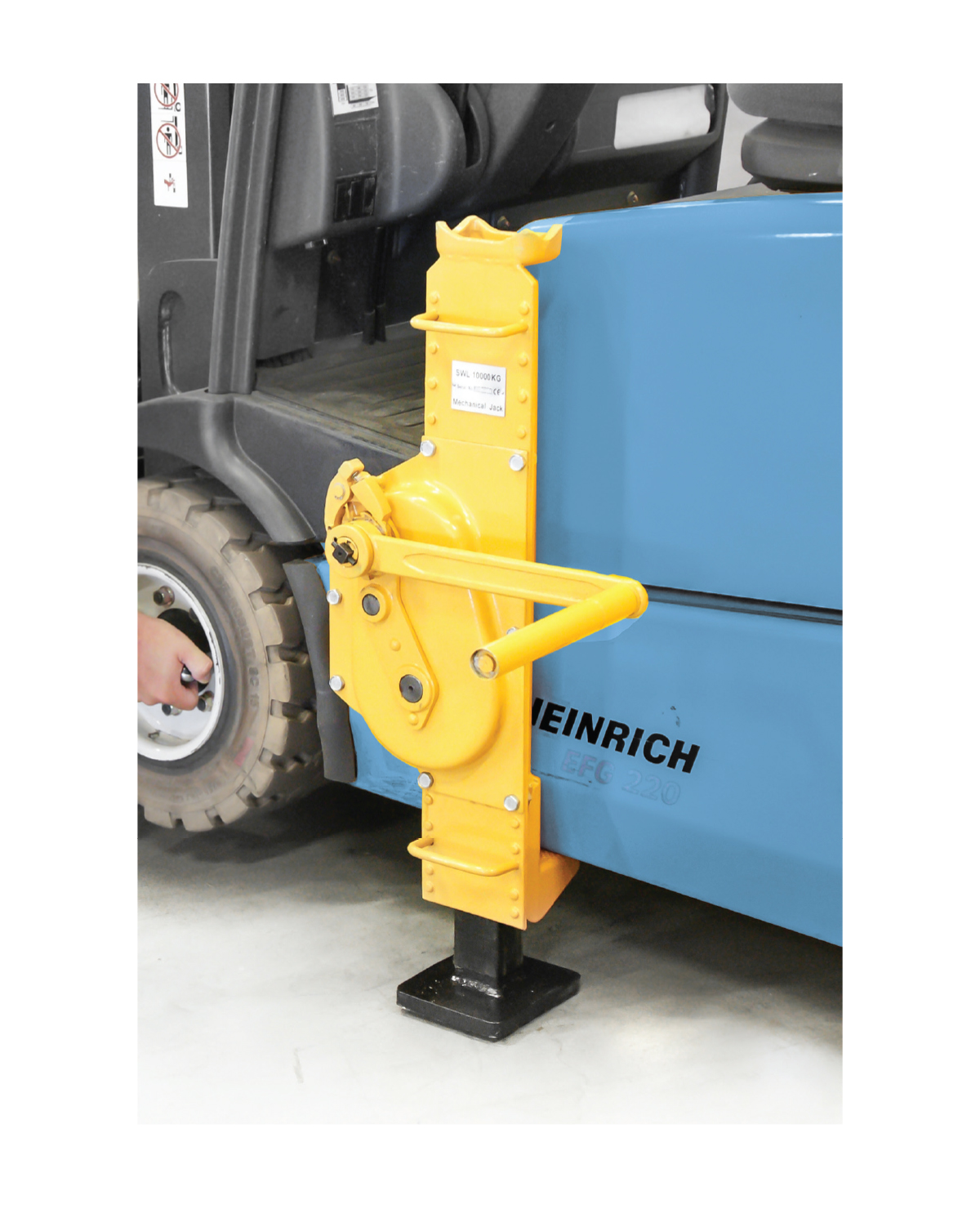

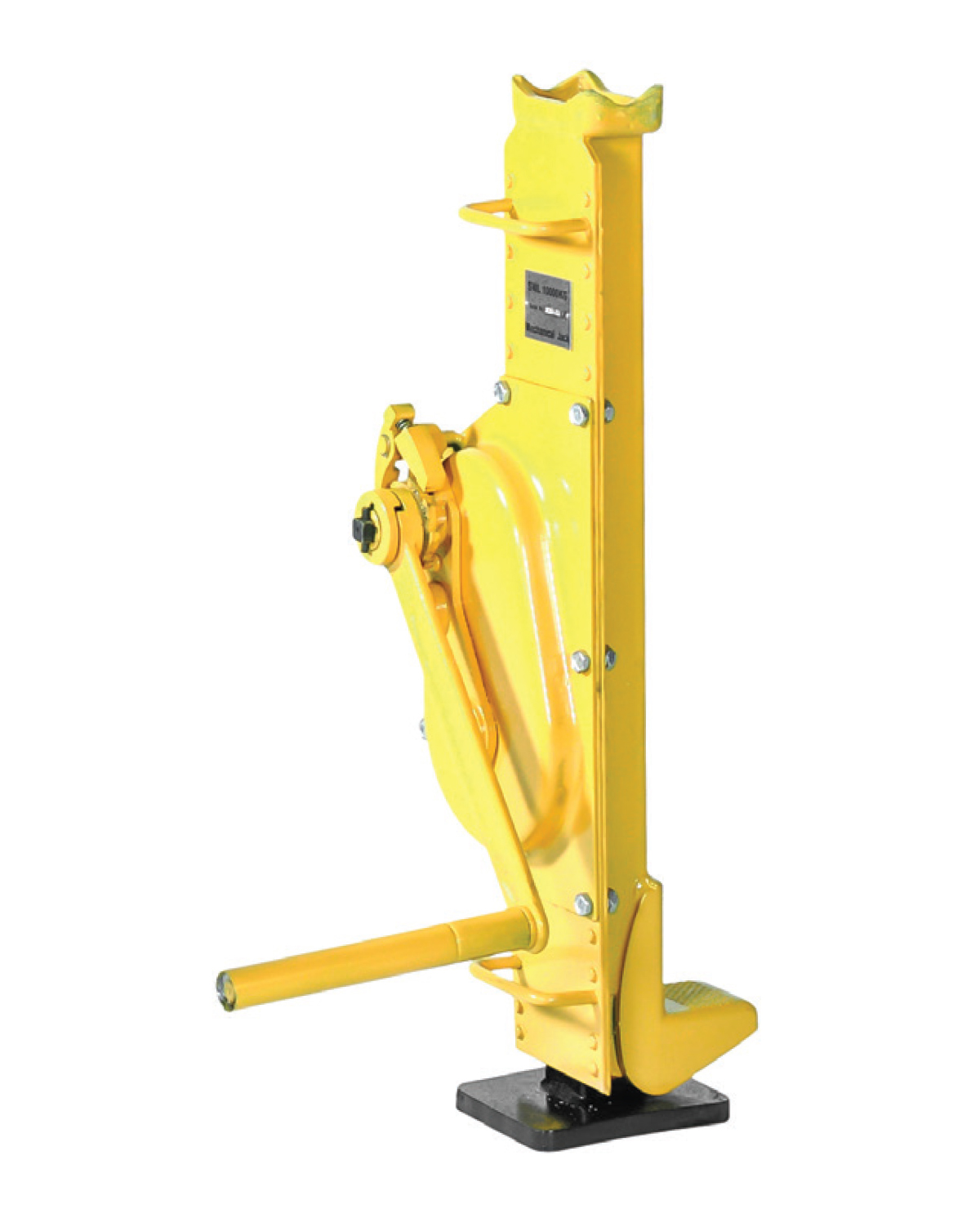

The 10-ton Rack and Pinion Mechanical Jack is a robust, durable, and highly reliable lifting solution widely used in industrial manufacturing, construction, transportation, and heavy machinery maintenance.
Operating on a pure mechanical gear-and-rack drive mechanism, this jack ensures smooth lifting operations, precise load control, and eliminates any risks of oil leakage common in hydraulic alternatives. The smart engineering design features dual lifting positions: a top saddle for high-clearance objects and a low-profile lifting toe (claw) for tight spaces near the ground, accommodating various job site requirements. Built from high-grade, heavy-duty alloy steel with a corrosion-resistant yellow powder coating, it includes an ergonomic crank handle for low-effort operation and a solid, wide base to guarantee maximum stability and safety during heavy-lifting tasks.
Specifications:
- W: 250 mm
- Lift H Top min - max: 800 - 1210 mm
- Lift H Claw min - max: 85 - 495 mm
- Capacity: 10000 kg
- Weight: 47 kg
