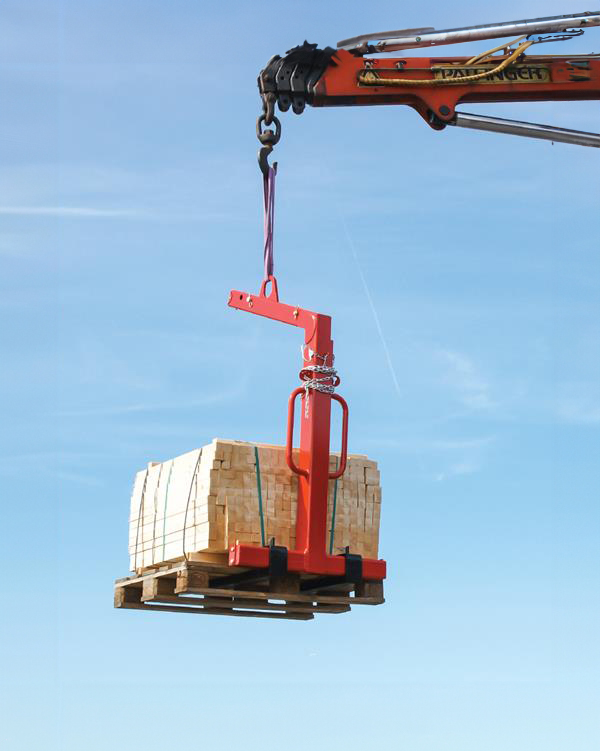

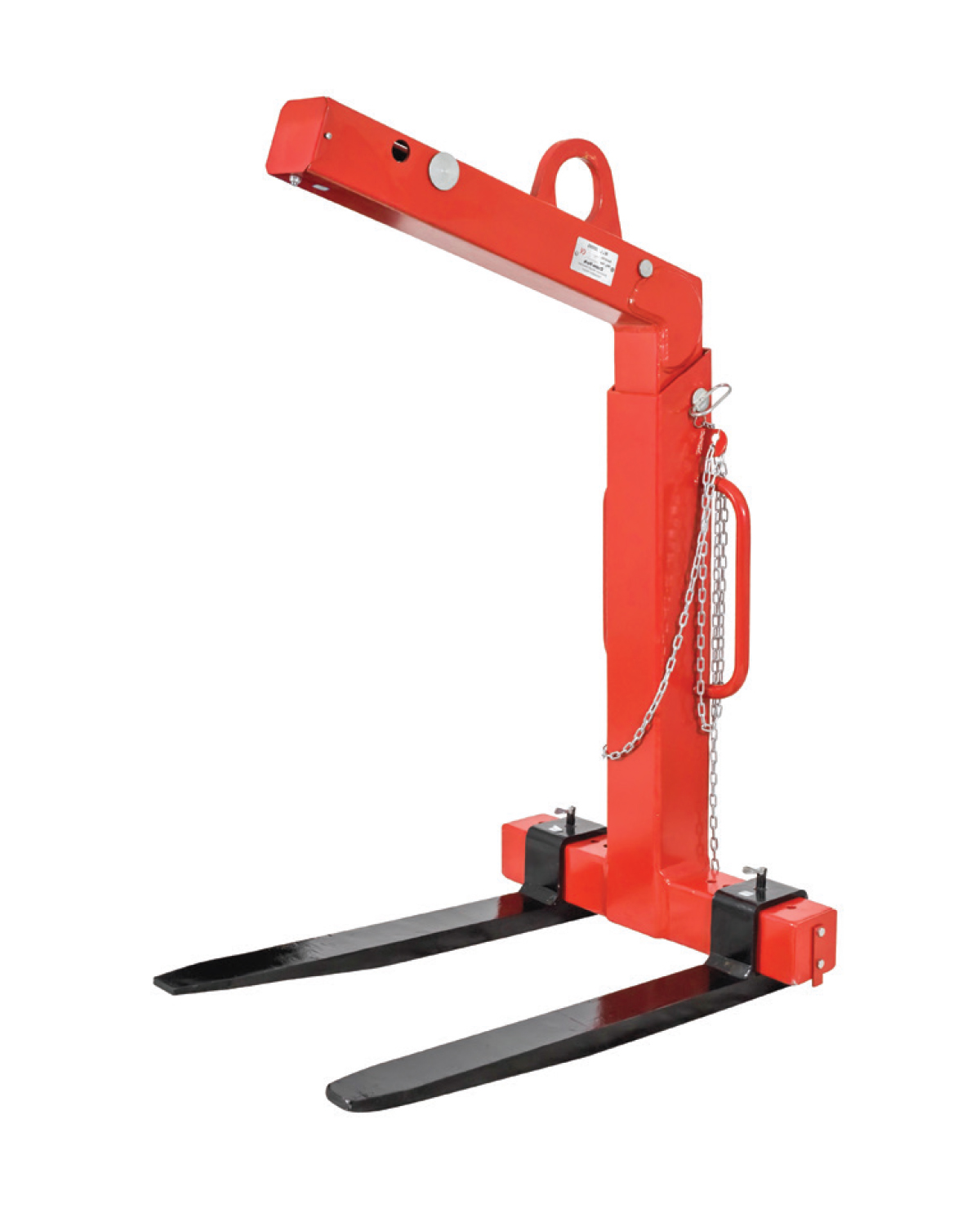

Crane fork for sideway handling of pallets with cranes, hoists, winches, etc.
• Self-balancing function makes sure that the load always stays in an upright position
• Available in 2 models with heavy lift of 1500 or 3000 kg capacity
• Adjustable fork widths from up to 900 mm
• Adjustable support heights up to 2355 or 2420 mm
• Max goods height can be set at between 1300 and 2000 mm
Specifications
Fork L mm: 1000
Fork width mm: Adjus abIe in 5 s eps from 350 o 900 mm Adjus abIe in 5 s eps from 450 o 900 mm
Lift height mm: Adjus abIe in 3 s eps from 1720 o 2420 mm
Auto setting min load kg: 600
Capacity max kg: 3000
Weight kg: 280
