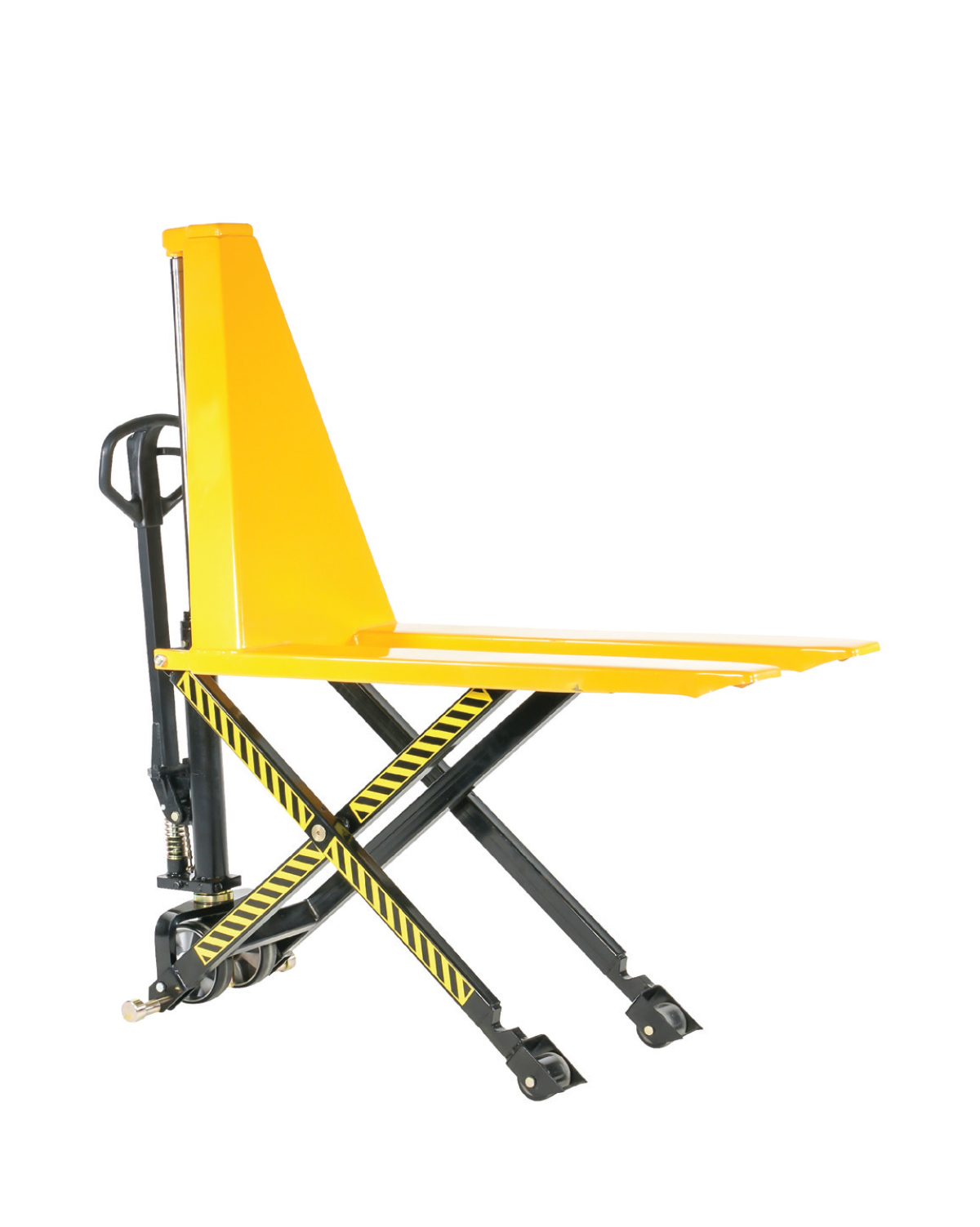

This Single-Cylinder Scissor Lift Pallet Truck is an innovative and versatile solution that combines the functions of a standard hand pallet jack and a lift table. Featuring a heavy-duty X-shaped scissor mechanism, it safely and efficiently raises loads to a maximum height of 800 mm, significantly reducing strain on workers and improving ergonomic efficiency during loading and unloading tasks. With a robust load capacity of 1000 kg and a standard fork length of 1150 mm, this equipment is ideal for warehouses, manufacturing facilities, and logistics centers looking to optimize their material handling workflows.
Specifications:
- Fork W mm: 540
- Fork L mm: 1150
- Fork size mm: 160
- Min lift H mm: 85
- Max lift H mm: 800
- Capacity kg: 1000
- Weight kg: 125
