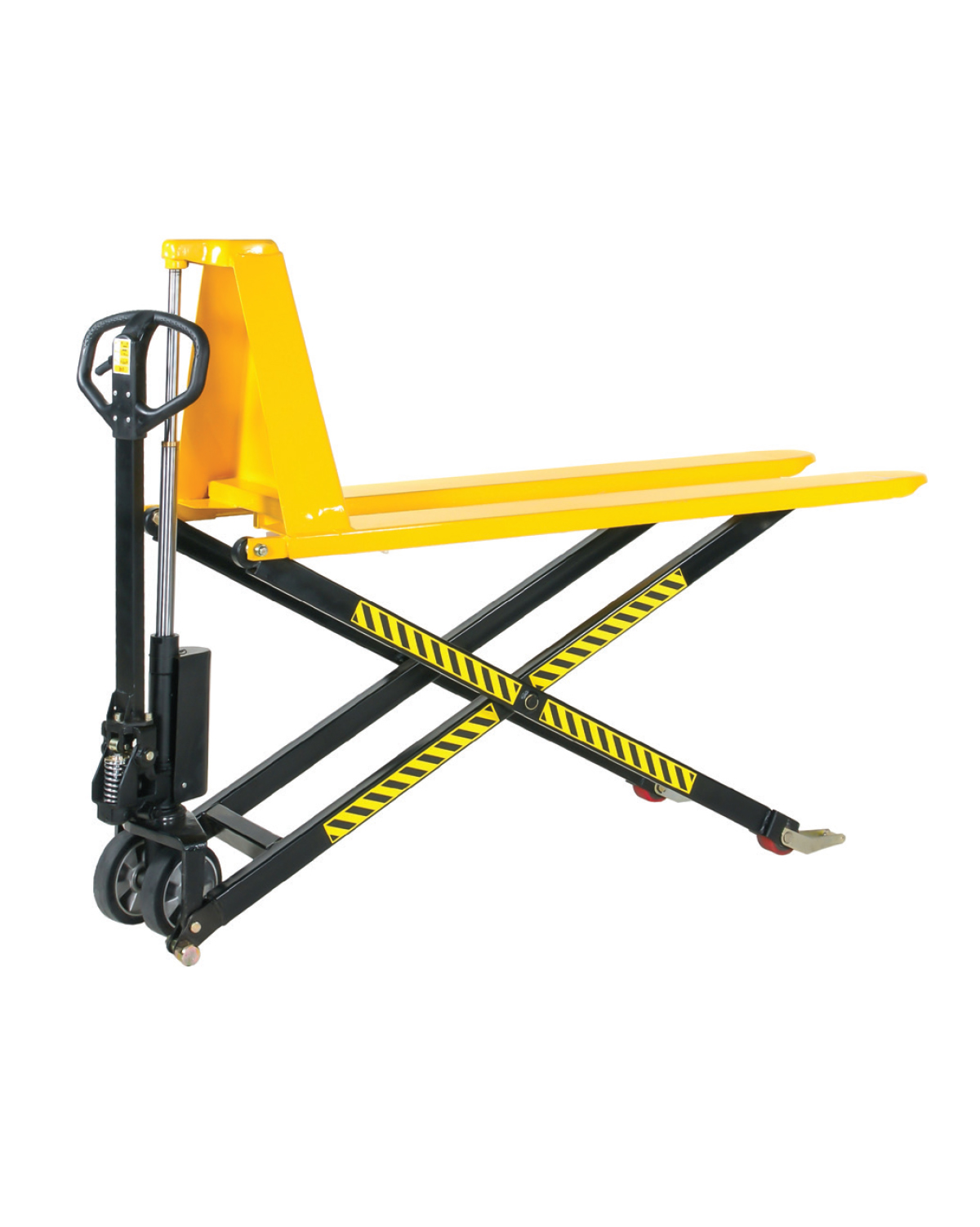

The Scissor Lift Pallet Truck equipped with a telescopic cylinder is an innovative material handling solution that bridges the gap between a standard hand pallet jack and a lift table.
Featuring a smart scissor-leg design, this truck automatically locks into place as the forks are raised to ensure maximum stability and operator safety. The extended fork length of 1500 mm allows for the efficient handling of oversized or longer pallets. Driven by a powerful, high-quality hydraulic pump system, it can effortlessly lift loads up to 1000 kg to a maximum height of 795 mm, making it ideal for loading/unloading trucks, feeding production lines, or stacking goods on shelves while maintaining an ergonomic working height.
Specifications:
- Fork L x W mm: 1500 x 540
- Fork size mm: 160
- Min lift H mm: 85
- Max lift H mm: 795
- Capacity kg: 1000
- Weight kg: 110
